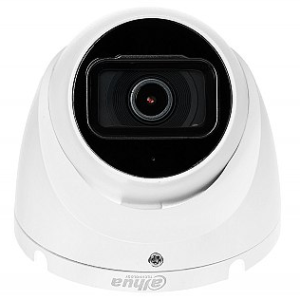

DAHUA Telecamera IPC-HDW1530T-0280B-S6 IP CAMERA, 5 MPIX, 2880X1620, IR LED
Il prezzo originale era: € 120,00.€ 104,00Il prezzo attuale è: € 104,00. + IVA (€ 126,88)
- Descrizione
- Size Guide
- Informazioni aggiuntive
- Recensioni (0)
Descrizione
Descrizione
sensor: 1 / 2.7 “5MP Progressive Scan CMOS
resolution: 2880×1620 (16: 9) @ 20fps
interface: Ethernet 10/100 Base-T PoE 802.3af
compression: H.265+ / H.265 / H.264 + / H.264 / MJPEG
number of pixels: 5Mpx
sensitivity: 0.03lux / F2.0 (color, 30IRE), 0lux (IR on)
lens: 2.8mm
illuminator: 1 IR LED (range 30m)
AWB, AGC, BLC, HLC, 3D NR, DWDR, RoI
automatic ICR infrared filter
built-in microphone
compatible with: ONVIF, CGI, Milestone, Genetec, RTSP, P2P
systems: motion detection, privacy zones
processing speed and resolution:
20 fps for 2880×1620 (5Mpx)
25/30 fps for 2688×1520 (4Mpx)
bitrate: 32Kbps 6144Kbps (H.264), 12Kbps 6144Kbps (H.265)
image preview:
Smart PSS, DSS Express, DSS PRO
web browsers: IE, Firefox, Chrome
mobile devices with the following systems: iOS, Android
housing: protection class (IP67)
power supply: 12V DC or PoE 48V (802.3af)
IPC-HDW1530T-0280B-S6 is an economical 5MP Eyeball Entry series camera , used for building high definition vision systems. The device has been equipped with a 1/2.7 “5MP Progressive Scan CMOS image sensor, which allows you to capture video recordings at a resolution of 2880×1620 . Numerous available correction functions, including DWDR , 3DNR , ensure excellent image quality. scenes, and a built-in IR illuminator with a range of 30m guarantees that 24/7 monitoring is carried out while maintaining the particularity and legibility of the recordings obtained. The device is equipped with a microphone and is characterized by a high degree of resistance to adverse weather conditions (IP67).
Specification
| DH-IPC-HFW1530S-0280B-S6 | |
| Main | |
| Converter | 1/2.7″ 5MP Progressive Scan CMOS |
| Resolution | 5Mpx, 2880 (H) x 1620 (V) pixels |
| RAM / ROM | 128MB / 16MB |
| Scanning system | Progressive |
| Snapshot | Auto / Manual, 1/3 ~ 1 / 100000s |
| Minimum lighting | Color: 0.03 Lux / F2.0 (30 IRE) B / W: 0.003 Lux / F2.0 (30 IRE) IR on: 0 Lux |
| Illuminator | 1 IR LED |
| Illuminator range | 30m (98.4ft) |
| Illuminator control | Automatic / Manual |
| Position adjustment | Pan: 0 ° ~ 360 ° Tilt: 0 ° ~ 90 ° Rotation: 0 ° ~ 360 ° |
| Lens | |
| Type | Fixed focus |
| Assembly | M12 |
| Focal length | 2.8mm (F2.0) |
| Viewing angle | H: 105° V: 57° D: 125° |
| Focus adjustment | Constant |
| Macro mode | 0.5m (1.6ft) |
| DORI coverage | Detection: 56m. Observation: 22.4m. Recognition: 11.2m. Identification: 5.6m |
| Image | |
| Video compression | H.265 / H.264 / H.264B MJPEG (Sub stream) |
| Smart Codec | Yes (H.265 + / H.264 +) |
| Simultaneous number of video streams | 2 |
| Processing resolution | 5Mpx (2880×1620) / 4Mpx (2688×1520) / 4Mpx (2560×1440) / 3Mpx (2048×1536) / 3Mpx (2304×1296) / 1080p – 2Mpx (1920×1080) / 1.3Mpx (1280×960) / 720p (1280×720) / D1 (704×576 / 704×480) / VGA (640×480) / CIF (352×288 / 352×240) |
| Processing speed and resolution (main stream) |
5Mpx – 2880×1620 (1 ~ 20kl/s) 4Mpx – 2688×1520 (1 ~ 25/30kl/s) |
| Processing speed and resolution (auxiliary stream) |
D1 – 704×576 (1 ~ 25fps) D1 – 704×480 (1 ~ 30fps) |
| Baud rate control | CBR / VBR |
| Bitrate | 32Kbps ~ 6144Kbps (H.264) 12Kbps ~ 6400Kbps (H.265) |
| Day Night | Auto (ICR) / Color / Black & White |
| Gain control | Automatic (AGC) / Manual |
| BLC | Support |
| HLC | Support |
| Background compensation | DWDR |
| White balance | Automatic (AWB) / Natural / Street light / Outdoor / Manual / Region |
| Noise reduction | 3D DNR |
| Smart IR | Support |
| Privacy zones | On on / off (4 areas, rectangles) |
| Motion detection | On on / off (4 areas, rectangles) |
| Area of ??Interest (Roi) | On on / off (4 areas) |
| Mirror reflection | Support |
| Image rotation | 0 °, 90 °, 180 °, 270 ° (support 90 °, 270 ° for resolution 2688×1520 and below) |
| Intelligent functions | |
| Event trigger | Motion detection, tamper, connection loss, IP address conflict, unauthorized access, voltage anomaly |
| Interface | |
| Ethernet | 1x RJ45 10/100 Base-T |
| Power | 1x 5.5 / 2.1 socket on the cable |
| Network | |
| Supported protocols | IPv4, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, SMTP, FTP, DHCP, DNS, NTP, Multicast |
| Compliance with the standard | ONVIF (Profil S), CGI, Genetec, P2P |
| Online users | 20 users |
| Network archiving | FTP Dahua Cloud |
| Operation via www browsers | IE, Chrome, Firefox |
| Remote control | CMS (Smart PSS), DSS, DMSS, P2P mobile devices: iOS, Android |
| Others | |
| Certificate | LVD: EN62368-1 EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B 20-01-2022 |
| Construction | Camera front: metal Camera body: metal Holder: metal |
| Tightness class | IP67 |
| Power | DC 12V (±30%) PoE DC 48V (802.3af) |
| Power consumption | Basic: 1.9W (12V DC), 2.3W (PoE) Max 3.9W (12V DC), 4.5W (PoE) |
| Humidity | 0 ~ 95% (no condensation) |
| Ambient temperature | -40°C ~ +60°C (-40°F ~ +140°F) |
| Working temperature | -40°C ~ +60°C (-40°F ~ +140°F) |
| Weight | 320g (0.71Ib) |
| Dimensions (width / length) | Ø94×85.6mm (Ø3.7” x 3.4”) |
