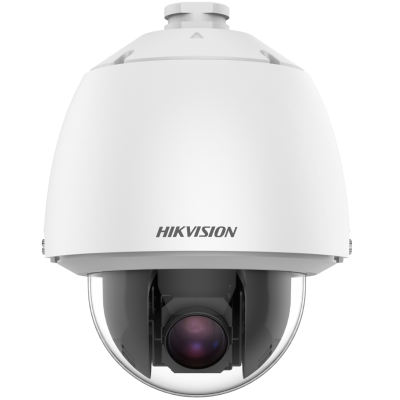

Telecamera HIKVISION modello IP DS-2DE5232W-AE(S6) HIKVISION 2 MP 32X Powered by DarkFighter Network Speed Dome ( Usato pari al nuovo)

Descrizione

• 1/2.8″ Progressive Scan CMOS
• High quality imaging with 2 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• 32× optical zoom and 16× digital zoom provide close up views over expansive areas
• WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
• 24 VAC & PoE (802.3at)
• Efficient H.265+/H.265 compression technology
• Water and dust resistant (IP66) and vandal resistant (IK10)

 DORI
The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or
objects within its field of view.
It is calculated based on the camera sensor specification and the criteria given by EN 62676-4: 2015.
DORI Detect Observe Recognize Identify
Definition 25 px/m 63 px/m 125 px/m 250 px/m
Distance (Tele) 1600.0 m (5249.3 ft) 634.9 m (2083.1 ft) 320.0 m (1049.9 ft) 160.0 m (524.9 ft)
 Specification
Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON)
Shutter Speed 1 s to 1/30,000 s
Slow Shutter Yes
Day & Night IR cut filter
Zoom 32 × optional, 16 × digital
Max. Resolution 1920 × 1080
Lens
Focus Auto, semi-auto, manual
Focal Length 4.8 mm to 153.6 mm
Zoom Speed Approx. 3.6 s
FOV
Horizontal field of view: 58.6° to 2.4° (wide-tele),
Vertical field of view: 33.6° to 1.4° (wide-tele),
Diagonal field of view: 67.0° to 2.8° (wide-tele)
Aperture Max. F1.6
PTZ
Movement Range (Pan) 360°
Movement Range (Tilt) -5° to 90° (auto flip)
Pan Speed Pan speed: configurable from 0.1° to 250°/s; preset speed: 300°/s
Tilt Speed Tilt speed: configurable from 0.1° to 150°/s, preset speed 200°/s
Proportional Pan Yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans
Power-off Memory Yes
Park Action
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
panorama scan
3D Positioning Yes
PTZ Status Display Yes
Preset Freezing Yes
Scheduled Task
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
panorama scan, dome reboot, dome adjust, aux output

Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline profile/Main profile/High profile
H.265 Type Main profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream
Audio
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/32 Kbps
(PCM)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering Yes
Network
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, ISUP
API
Open Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK,
ISUP
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users; 3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2,
host authentication (MAC address)
Client iVMS-4200, HikCentral Pro, Hik-Connect
Web Browser IE 10-11, Chrome 57+, Firefox 52+, Safari 12+
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Wide Dynamic Range (WDR) 120 dB
Defog Digital Defog
Regional Exposure Yes
Regional Focus Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by
client software or web browser
Image Parameters Switch Yes

Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable
SNR ＞52 dB
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Alarm 2 inputs, 1 output
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;
1 output (line out), line level, output impedance: 600 Ω
Reset Yes
Event
Smart Tracking Manual tracking, auto-tracking
Basic Event Motion detection, video tampering alarm, exception, alarm input and output
Smart Event
Face detection, line crossing detection, intrusion detection, region entrance detection,
region exiting detection, unattended baggage detection, object removal detection,
audio exception detection
Alarm Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm
output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
General
Operating Condition -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
Power 24 VAC, Max. 20 W; PoE (802.3at)
Material Metal
Dimension Ø 220 mm × 280 mm (Ø 8.66″ × 11.02″)
Weight Approx. 3.0 kg (6.61 lb.)
Approval
EMC
FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN
50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7);
KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 62368-1)
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014+A11:2017),
BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005);
LOA (IEC/EN 60950-1)
Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
Protection
IP66 (IEC 60529-2013), IK10 (IEC 62262:2002), TVS 6000V lightning protection, surge
protection and voltage transient protection
