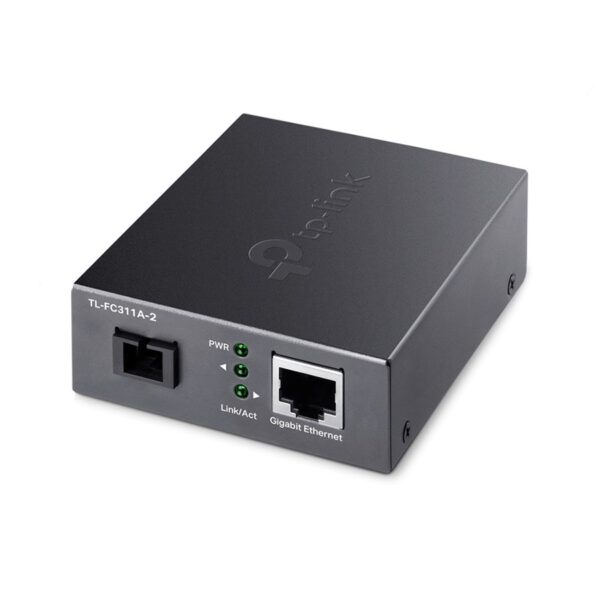

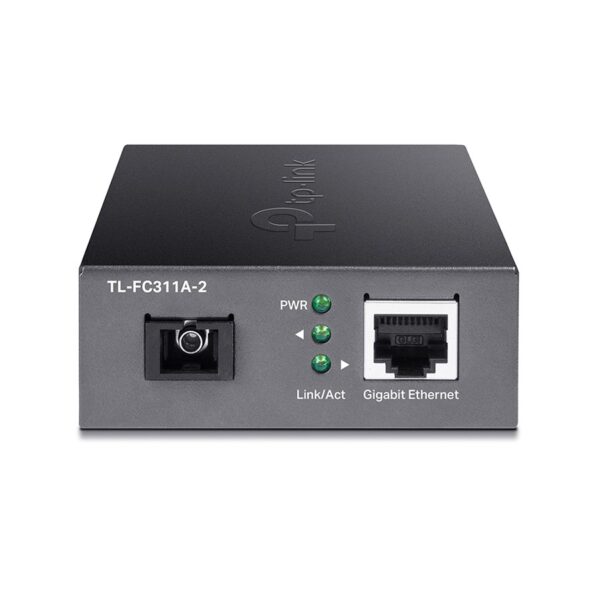

Media Converter – TP-Link FC311A-2 Gigabit WDM Media Converter SM SC/UPC 2km TX 1550nm
Il prezzo originale era: € 30,00.€ 23,50Il prezzo attuale è: € 23,50. + IVA (€ 28,67)
Tempo di spedizione 4 giorni lavorativi.
- Descrizione
- Size Guide
- Informazioni aggiuntive
- Recensioni (0)
Descrizione
Descrizione
To make a connection you need 1x FC311A-2 and 1x FC311B-2!
What This Product Does
TL-FC311A-2 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
TL-FC311A-2 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 2 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311A-2 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter TL-FC311B-2 is one of the products that can cooperate with TL-FC311A-2.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
- 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extends fiber distance up to 2 km
Specification
| FC311A-2 | |
| Network | |
| Standards and Protocols | IEEE 802.3i, 802.3u, 802.3ab, 802.3z |
| Environment | |
| Operating Temperature | 0?C to 50?C (32?F to 122?F) |
| Storage Temperature | -40?C to 70?C (-40?F to 158?F) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
| Hardware features | |
| Interface | 1× Gigabit SC Fiber Port 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX) |
| Network Media | Single-mode Fiber UTP category 5, 5e cable (maximum 100m) |

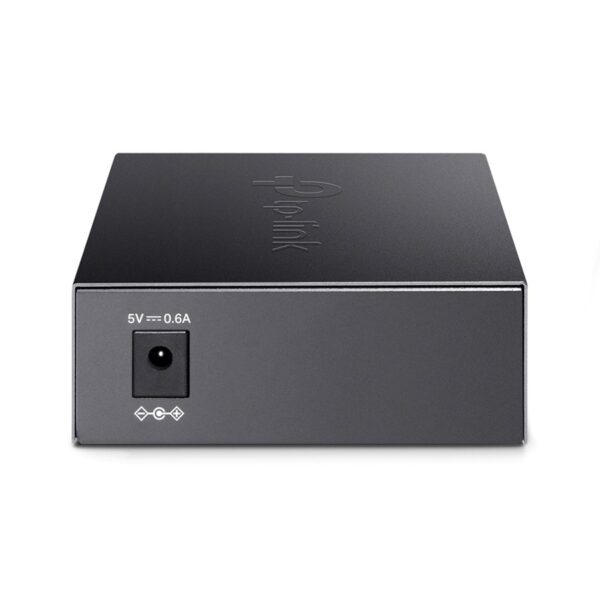

| Power Supply | External Power Adapter: 5 V/0.6 A |
| LED | PWR, Link/Act |
| Dimensions ( W x D x H ) | 3.7×2.9×1.1 in (94.5×73.0×27.0 mm) |
| Wave Length | 1550 nm TX, 1310 nm RX |
| Media converter & module | |
| Fiber Type | 9/125 μm single-mode fiber (≤2 km) |
