UBIQUITI Terminale ont UFIBER WIFI6 GPON ONT TERMINAL AX1500 4X GE SC/APC
Il prezzo originale era: € 104,00.€ 93,90Il prezzo attuale è: € 93,90. + IVA (€ 114,56)
Prodotto presso il fornitore, Riusciamo a consegnare in 9 giorni
- Descrizione
- Size Guide
- Informazioni aggiuntive
- Recensioni (0)
Descrizione
Descrizione

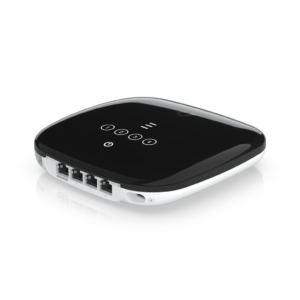

Ubiquiti UFiber WIFI6 is an ONU / ONT client terminal designed for use in the GPON network. It is mainly used with OLT transmitting terminals of the UFiber series. It is equipped with 4 gigabit Ethernet ports and 1 SC/APC port, which serves as a WAN. It has the ability to transmit WiFi in the 2.4 and 5 GHz bands simultaneously, in accordance with the new standard 802.11ax (WiFi 6). The maximum theoretical throughput of a wireless connection is 1500 Mb/s, 1200 Mb/s in the 5 GHz band and 300 Mb/s in the 2.4 GHz band.
GPON made by Ubiquiti
UFiber is a closed GPON network ecosystem created by Ubiquiti. It enables the provision of triple play FTTH (Fiber to the Home) services with internet, telephone and television. The GPON network supports the transmission with a capacity of 2.5 / 1.25 Gb/s using a single-mode fiber optic cable. You can manage UFIber devices through a simple, graphical web interface accessible from a web browser. All settings are available in one place, which greatly facilitates network management. GPON Ubiquiti solutions are not compatible with devices from other manufacturers, they constitute a closed ecosystem.

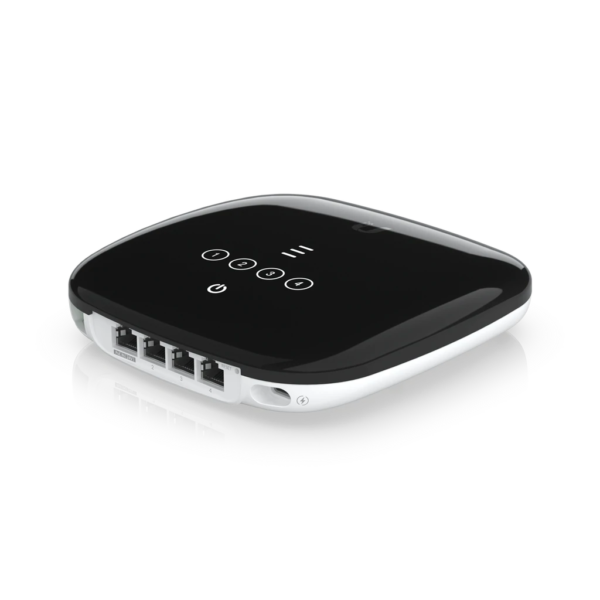

SC/APC port, 4x gigabit Ethernet
The WAN port is SC/APC type, to it you connect the signal from the OLT terminal. There are 4 gigabit Ethernet ports 10/100/1000 Mb/s available for customers. The use of high-bandwidth ports enables full use of the speed offered by the GPON standard.
WiFi 6 (802.11ax standard)
The device supports the modern 802.11 ax standard, also known as WiFi 6. The wireless network is broadcast in the 2.4 and 5 GHz bands simultaneously. Thanks to the new standard, the maximum theoretical throughput can reach up to 1500 Mb/s: 1200 Mb/s in 5 GHz and 300 Mb/s in 2.4 GHz (2×2 MIMO). ONT has built-in omnidirectional antennas.

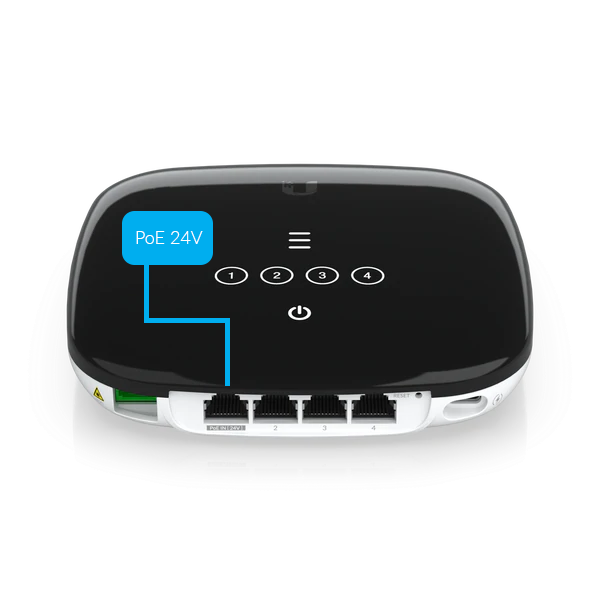

PoE or USB-C powered
An additional advantage is the ability to power the device via passive PoE with 24 V DC. This is useful in many situations, especially in networks where we use PoE switches. In addition, the terminal can be supplied as standard via the USB-C port with 5 V DC. A power supply with a USB-C connector is included in the set.
Specifications
| UF-WIFI6 | |
| Mechanical | |
| Dimensions | 140.8 x 141.5 x 31.65 mm (5.54 x 5.57 x 1.25″) |
| Weight | 415 g (0.99 lb) |
| Enclosure material | UV-stabilized polycarbonate |
| Hardware | |
| Processor | Dual-core MIPS 1004 Kc at 900 MHz |
| Memory | 256 MB RAM |
| Total non-blocking line rate | 2.488 Gbps downstream 1.244 Gbps upstream |
| Networking interfaces | (1) SC/APC, ITU-G.984 GPON WAN port (4) GbE RJ45 LAN portsWiFi 802.11ax 5/2.4 GHz channels |
| PoE interface | (1) PoE in, 24V passive PoE |
| Management interface | Ethernet in-band
PON |
| Button | Factory-reset |
| Max. power consumption | 11 W |
| Power method | USB-C 5VDC, 3A 24V passive PoE, 0.5A |
| Power supply | 5VDC, 3A power adapter, 1.5 m cord (included) Passive PoE 2-pair (4, 5+; 7, 8-) |
| Supported voltage range | 10 to 30VDC passive PoE 5VDC adapter |
| Normal TX range of optical module | 0.5 to 5 dBm |
| Normal RX range of optical module | -8 to -28 dBm |
| Max. WiFi TX power | 2,4 GHz: 20 dBm
5 GHz: 20 dBm |
| MIMO | 2,4 GHz: 2×2
5 GHz: 2×2 |
| Max. WiFi radio rate | 2,4 GHz: 300 Mb/s
5 GHz: 1200 Mb/s |
| Antenna Gain | 2,4 GHz: 1 dBi
5 GHz: 3 dBi |
| Operating temperature | -15 to 45° C (5 to 113° F) |
| Operating humidity | 10 to 90% noncondensing |
| LEDs | |
| PON status | (3) signal LEDs All-OFF: bootup 1x orange: signal too low (< -28 db) 1x white: signal low (>= -28 db) 2x white: signal good (>= -25 db) 3x white: signal strong (>= -11 db) 1x orange + 2x white: signal too strong (>= -8 db) 3x orange: no signal LEDs alternate between orange + white + orange and a signal strength indicator: No authority |
| Ethernet | Steady white: link up Blinking white: activity OFF: link down |
| Power | White: ON |
| Software | |
| Mode | ONU/ONT layer 2/3 Ethernet switch |
| Services | Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features |
| Utilities | Dashboard, monitoring, alarms, and logs |
| Other | Remote reset, remote reboot, remote firmware upgrade, VLAN support |
| Security | GEM Port Encryption |
| Ubiquiti specific features | UBNT Discovery and UISP Mobile app |
| WiFi standards | 802.11 b/g WiFi 4/WiFi 5/WiFi 6 |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES) |
| Minimum software requirements | Any modern web browser ( |
| Fiber | |
| Operating wavelength | Tx: 1310 nm
Rx: 1490 nm |
| Optical interface downstream nominal bit rate | 2488,32 Mb/s |
| Optical interface upstream nominal bit rate | 1244,16 Mb/s |
| Physical reach | 20 km |
| Supported Data Rates | |
| 802.11 b | 1, 2, 5.5, 11 Mb/s |
| 802.11 g | 6, 9, 12, 18, 24, 36, 48, 54 Mb/s |
| 802.11 n (WiFi 4) | 6.5 Mb/s to 300 Mb/s (MCS0 – MCS15, HT 20/40) |
| 802.11 ac (WiFi 5) | 6.5 Mb/s to 866.7 Mb/s (MCS0 – MCS9 NSS1/2, VHT 20/40/80) |
| 802.11 ax (WiFi 6) | 8.6 Mb/s to 1.2 Gb/s (MCS0 – MCS11 NSS1/2, HE 20/40/80) |
